In the evolving world of telecommunications, gateways play a crucial role in bridging traditional telephony systems with modern IP-based networks. If you are exploring VoIP (Voice over IP) technology or upgrading your business communication infrastructure, you might have come across terms like FXO Gateway, FXS Gateway, and Hybrid Gateway. Understanding the difference between these gateway types is essential for choosing the right equipment to ensure seamless voice communication.
In this blog, we will dive deep into what FXO, FXS, and Hybrid Gateways are, their key differences, and how they are used in VoIP networks. Let’s start by understanding the basics.

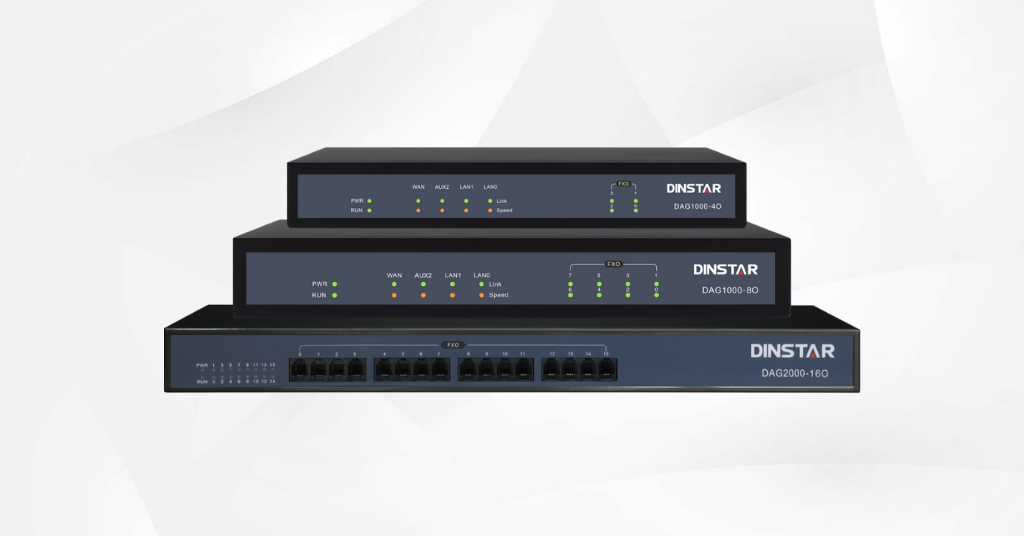

What is an FXO Gateway?
FXO stands for Foreign Exchange Office. An FXO Gateway is a device that connects traditional analog telephone lines (PSTN) or PBX systems to a VoIP network. It acts as an interface that receives the analog line from the telephone company and converts voice signals into IP packets for transmission over the internet.
How Does an FXO Gateway Work?
An FXO port connects to a telephone line coming from the public switched telephone network (PSTN) or a PBX system. It receives the line voltage and dial tone from the service provider, allowing a VoIP phone system to place and receive calls on a traditional telephone line.
For example, if your business uses both VoIP phones and traditional landlines, the FXO Gateway allows your VoIP phone system to interact with the PSTN by connecting to the analog lines.
Common Uses of FXO Gateway
- Connecting VoIP Systems to PSTN: Allows VoIP users to make and receive calls on the traditional phone network.
- Cost-Effective Communication: Enables businesses to reduce costs by routing calls over IP but still retain PSTN connectivity.
- Backup Line: Acts as a failover when the VoIP network is down, ensuring uninterrupted communication.
Explore More of Our Products Here:
What is an FXS Gateway?
FXS stands for Foreign Exchange Subscriber. An FXS Gateway is a device that provides a connection to standard analog devices such as telephones, fax machines, or modems. It delivers dial tone, ringing voltage, and line voltage to these devices, effectively emulating a telephone line.
How Does an FXS Gateway Work?
An FXS port connects to analog end-user devices (phones, fax machines). It provides the necessary signaling to these devices to simulate a traditional telephone line, allowing these devices to communicate with a VoIP network.
For example, if you have analog phones at your office but want to use a VoIP system, the FXS Gateway lets you connect those phones directly to the IP network without needing to replace your analog equipment.
Common Uses of FXS Gateway
- Connecting Analog Devices to VoIP: Enables the use of existing analog telephones on an IP-based phone system.
- Legacy Equipment Support: Helps businesses preserve investment in older phones and fax machines.
- Branch Office Connectivity: Provides analog ports for small offices to use VoIP technology seamlessly.

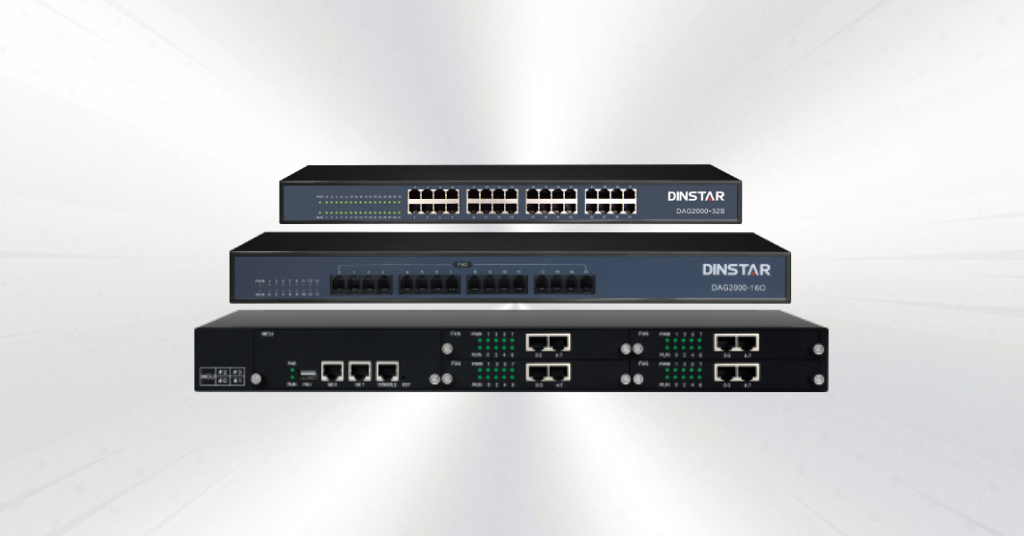

What is a Hybrid Gateway?
A Hybrid Gateway combines both FXO and FXS ports in a single device. This allows it to simultaneously interface with traditional analog telephone lines and analog devices, bridging them with VoIP networks in one unit.
How Does a Hybrid Gateway Work?
Hybrid Gateways integrate the functionality of both FXO and FXS gateways. They can connect to PSTN lines via FXO ports and analog devices like telephones via FXS ports. This dual capability makes them ideal for businesses that need flexible connectivity options within the same network environment.
Common Uses of Hybrid Gateway
- Versatile Communication Setup: Supports both inbound PSTN calls and outbound analog device connections.
- Simplified Infrastructure: Reduces hardware footprint by combining two gateways into one.
- Cost Savings: Avoids the need to purchase and maintain separate FXO and FXS gateways.
Explore More of Our Products Here:
Key Differences Between FXO, FXS, and Hybrid Gateways
| Feature | FXO Gateway | FXS Gateway | Hybrid Gateway |
| Purpose | Connects PSTN line to VoIP system | Connects analog devices to VoIP | Combines FXO and FXS functionalities |
| Port Connects To | PSTN line or PBX line | Analog telephone, fax, or modem | Both PSTN line and analog devices |
| Provides Dial Tone? | No, receives dial tone | Yes, provides dial tone | Yes, on FXS ports |
| Signal Type | Receives line voltage from PSTN | Provides line voltage to devices | Both receive and provide signals |
| Use Case Example | To make/receive calls on PSTN | To use analog phones on VoIP system | To support both PSTN and analog devices in one system |
| Typical Users | Businesses integrating PSTN with VoIP | Businesses with existing analog devices | Businesses needing flexible hybrid setups |
How to Choose the Right Gateway for Your Business?
When selecting between FXO, FXS, and Hybrid Gateways, consider the following factors:
1. Your Current Infrastructure
- If you have multiple PSTN lines and want to connect them to your VoIP network, an FXO Gateway is necessary.
- If you rely heavily on analog devices like fax machines or phones, an FXS Gateway allows you to keep using them with your IP system.
- If your environment requires both PSTN line access and analog device support, a Hybrid Gateway offers the best flexibility.
2. Number of Lines and Devices
- Evaluate how many analog lines (PSTN) you need to connect.
- Count your existing analog phones or fax machines that need connectivity.
- Hybrid gateways often come with various port configurations (e.g., 4 FXO + 8 FXS) for mixed environments.
3. Budget and Scalability
- Separate FXO and FXS gateways can sometimes be cheaper initially but may increase hardware and maintenance costs.
- Hybrid gateways consolidate these functions, which might save costs in the long run.
- Consider future expansion plans and choose a gateway that can scale with your business.
Explore More of Our Products Here:
Conclusion
Understanding the differences among FXO, FXS, and Hybrid Gateways is vital for any business planning to adopt or upgrade their VoIP telephony infrastructure. FXO gateways connect traditional phone lines to VoIP, FXS gateways connect analog devices to IP networks, and hybrid gateways combine these functions in one versatile device.
Choosing the right gateway depends on your current setup, the types of devices you use, and your future communication needs. Leveraging these gateways ensures smooth, cost-effective, and reliable voice communication that bridges legacy telephony and modern IP systems seamlessly.
